LQIR-DG

Differential Game-Based Controller

GitHub: https://github.com/alibaniasad1999/bachelor-thesis

🎓 Abstract

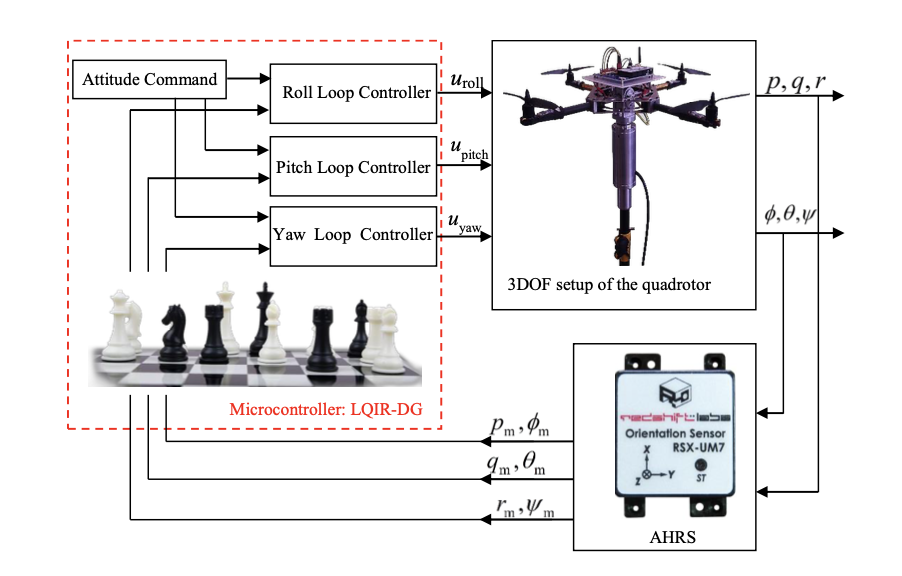

In this study, a quadcopter stand with three degrees of freedom (3‑DoF) is controlled using a differential‑game framework. Player 1 tracks the reference commands, while Player 2 injects worst‑case disturbances. The Nash‑equilibrium solution yields a robust Linear Quadratic Integral Differential Game (LQIDG) controller, providing strong disturbance rejection and tolerance to model uncertainty. Performance is verified in MATLAB Simulink and on a physical 3‑DoF platform.

Keywords: Quadcopter • Differential Game • Nash Equilibrium • LQDG • LQIDG • Model‑Based Design

🛠️ Plant Description

3‑DoF Quadrotor Stand

🎮 Differential Game Control

Linear Quadratic Differential Game (LQDG)

The coupled Riccati equations are

\[\begin{aligned} \dot K_1 &= -A^\top K_1 - K_1 A - Q_1 + K_1 S_1 K_1 + K_1 S_2 K_2\\ \dot K_2 &= -A^\top K_2 - K_2 A - Q_2 + K_2 S_2 K_2 + K_2 S_1 K_1 \end{aligned}\]

with optimal controls

\[u_i(t) = -R_{ii}^{-1} B_i^{\top} K_i(t) x(t), \quad i=1,2.\]

Linear Quadratic Integral Differential Game (LQIDG)

Integral action augments the state:

\[x_a = \begin{bmatrix} x_d - x \\ \displaystyle \int (y_d - y) \end{bmatrix}\]

State matrices

\[A_a = \begin{bmatrix} A & 0 \\ C & 0 \end{bmatrix},\quad B_a = \begin{bmatrix} B \\ 0 \end{bmatrix},\quad C = I.\]

Coupled Riccati equations

\[\begin{aligned} \dot K_{a1} &= -A^\top K_{a1} - K_{a1} A - Q_{a1} + K_{a1} S_{a1} K_{a1} + K_{a1} S_{a2} K_{a2}\\ \dot K_{a2} &= -A^\top K_{a2} - K_{a2} A - Q_{a2} + K_{a2} S_{a2} K_{a2} + K_{a2} S_{a1} K_{a1} \end{aligned}\]

Control law

\[u_i(t) = -R_{ii}^{-1} B_{ai}^{\top} K_{ai}(t) x_a(t), \quad i=1,2.\]

📐 Quadcopter Stand Model

The nonlinear dynamics follow

$\dot x = f(x,\omega)$

with

\[f = \begin{bmatrix} x_4 + x_5\sin x_1\tan x_2 + x_6\cos x_1\tan x_2\\[2pt] x_5\cos x_1 - x_6\sin x_1\\[2pt] (x_5\sin x_1 + x_6\cos x_1)\sec x_2\\[4pt] A_1\cos x_2\sin x_1 + A_2 x_5 x_6 + A_3\sigma_1 + A_4 x_5 \sigma_4 - \operatorname{sgn}(x_4)A_5 + A_6\cos x_1\\[4pt] B_1\sin x_2 + B_2 x_4 x_6 + B_3\sigma_2 + B_4 x_4 \sigma_4 - \operatorname{sgn}(x_5)B_5 + B_6\cos x_2\\[4pt] C_1 x_4 x_5 + C_2 \sigma_3 - \operatorname{sgn}(x_6) C_3 \end{bmatrix}\]

Full coefficient definitions are retained from the original manuscript.

🧪 Simulation in MATLAB Simulink

Model overview

Simulink Model

ODE45 Integrator

Integrator

All six channels

All channels

🚀 Simulation Results with LQIDG

Roll vs Pitch

Roll	Pitch

Yaw

Motor Commands

Motor 1	Motor 2

Motor 3	Motor 4

✅ Final 3‑DoF Test (Hardware)

Roll	Pitch

Yaw

Motor Commands (Hardware)

Motor 1	Motor 2

Motor 3	Motor 4

📺 Video

📜 License

This project is licensed under the MIT License.

Author: Ali BaniAsad

📚 Citation

If you use this work, please cite:

@article{BANIASAD2024515,
  title     = {Attitude control of a 3-DoF quadrotor platform using a linear quadratic integral differential game approach},
  journal   = {ISA Transactions},
  volume    = {148},
  pages     = {515-527},
  year      = {2024},
  issn      = {0019-0578},
  doi       = {https://doi.org/10.1016/j.isatra.2024.03.005},
  author    = {Ali BaniAsad and Reza Pordal and Alireza Sharifi and Hadi Nobahari}
}
